Linear tone column YC-507

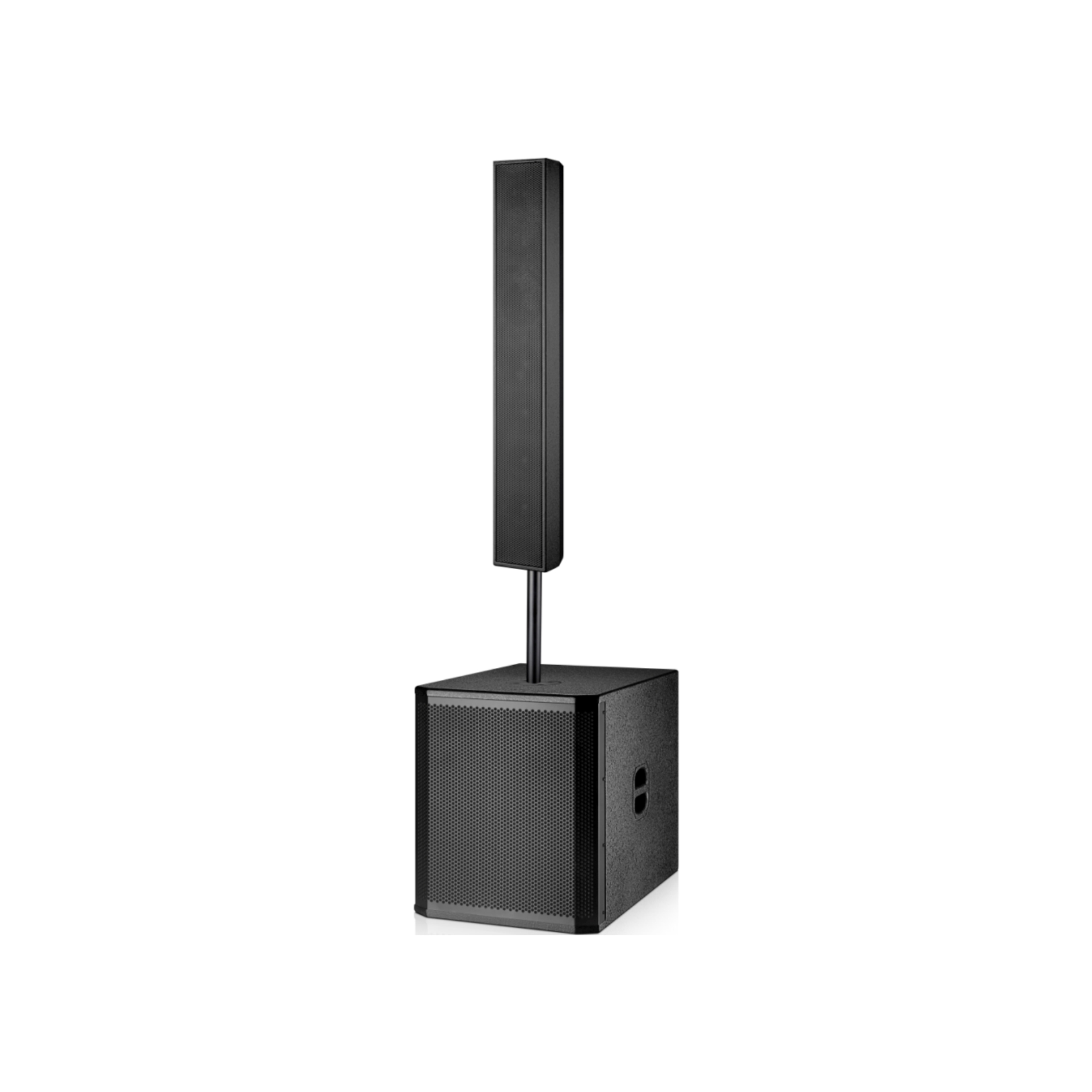

YC-507 sound column with YC-15B subwoofer is a combination sound with DSP active module composed of phase reversal design;

YC-507 sound column is equipped with 6 finely calibrated 5" full frequency units, plus a 1.4" diaphragm compression driver (34 core), with an efficient and flat wide frequency response, providing natural and non-chromatic language and background music, playback effect sound quality is transparent and natural, ultra-high resolution, extremely high transient, perfect directivity;

It is the most suitable for multi-function hall, banquet hall, family and small performance.

High-grade waterborne black dot spray paint sound column treble 100 magnetic 34 core alto 6*5"90 magnetic 25 core full frequency unit

Technical indicators:

Models of YC - 507

System 2-way FULL RANGE

Frequency response 125Hz-18KHz

Unit configuration LF:6*5"(127mm)/1"(25mm)

HF: 1 * 1 "(25 mm) exit / 1.34" (34 mm)

Impedance 6 Ω

93 db sensitivity

Power 250 w

Maximum sound pressure 106dB

Size 1085 mm * 163 mm * 172 mm

Dimension of outer box --mm

Net weight 13.8 KG / 1 PCS

Gross weight - 1 KG/PCS
