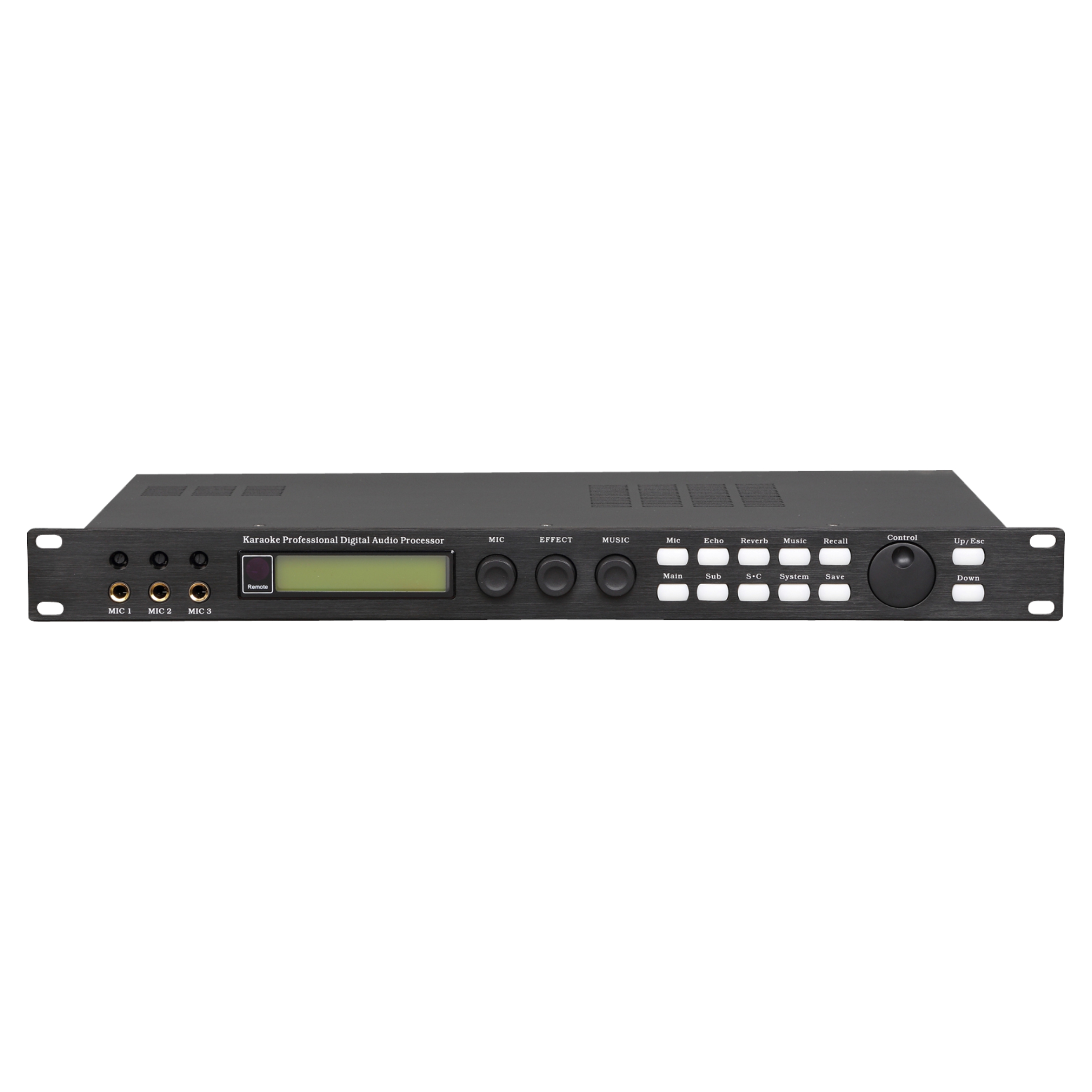

Digital pre-effector X5

? Karaoke effector with speaker processor function, each part function can be adjusted independently.

? Adopt 2Bit data bus and 32Bit DSP.

? The music is balanced with 7 pieces of parameters. Music to main output high-pass filter: 12dB/24dB(0Hz-303Hz)

? The microphone has 15-segment parameter equalization. There is a mike air pressure limit function.

? The main output has a 5-segment parameter balance. There is a compression limiter.

? Medium output, rear output and ultra-low are all equipped with 3 stages of parameter equalization.

? The microphone has 4 feedback suppression modes: OFF 1, 2, 3.

? Can store up to 16 modes.

? Microphone output, main output, middle output, ultra-low output, rear output are equipped with voltage limit and delay function.

? There is an administrator mode and a user mode. The user mode cannot be stored after adjusting the parameters.

? The machine has a full-featured menu, which can be set through a powerful PC interface.

music

? Equilibrium of musical parameters :7 pieces

? Music to main output high-pass filter: 12dB/24dB(0Hz-303Hz)

The microphone

? There are four microphone FBE modes: OFF 1, 2, 3

? With Mack air pressure limit function

? 15-segment microphone parameters are balanced

The effect

Echo:

? Echo low-pass filter: 5.99Hz - 20.6kHz

? Echo high-pass filter: 0Hz-1000Hz

? Equalization of echo parameters: 3 stages

? Echo level: 0 ~ 100%

? Echo direct sound level: 0 ~ 100%

? Pre-delay of echo: 0 ~ 500ms

? Echo right channel pre-delay: 0 ~ ±50%, (relative to the left channel)

reverberation

? Adjustable range of reverberation low-pass filter: 5.99Hz-20.6KHz

? Adjustable range of reverberation high-pass filter: 0Hz-1000Hz

? Reverb level adjustable range: 0 ~ 100%

? Reverb direct sound adjustable range: 0 ~ 100%
