Passive Bass

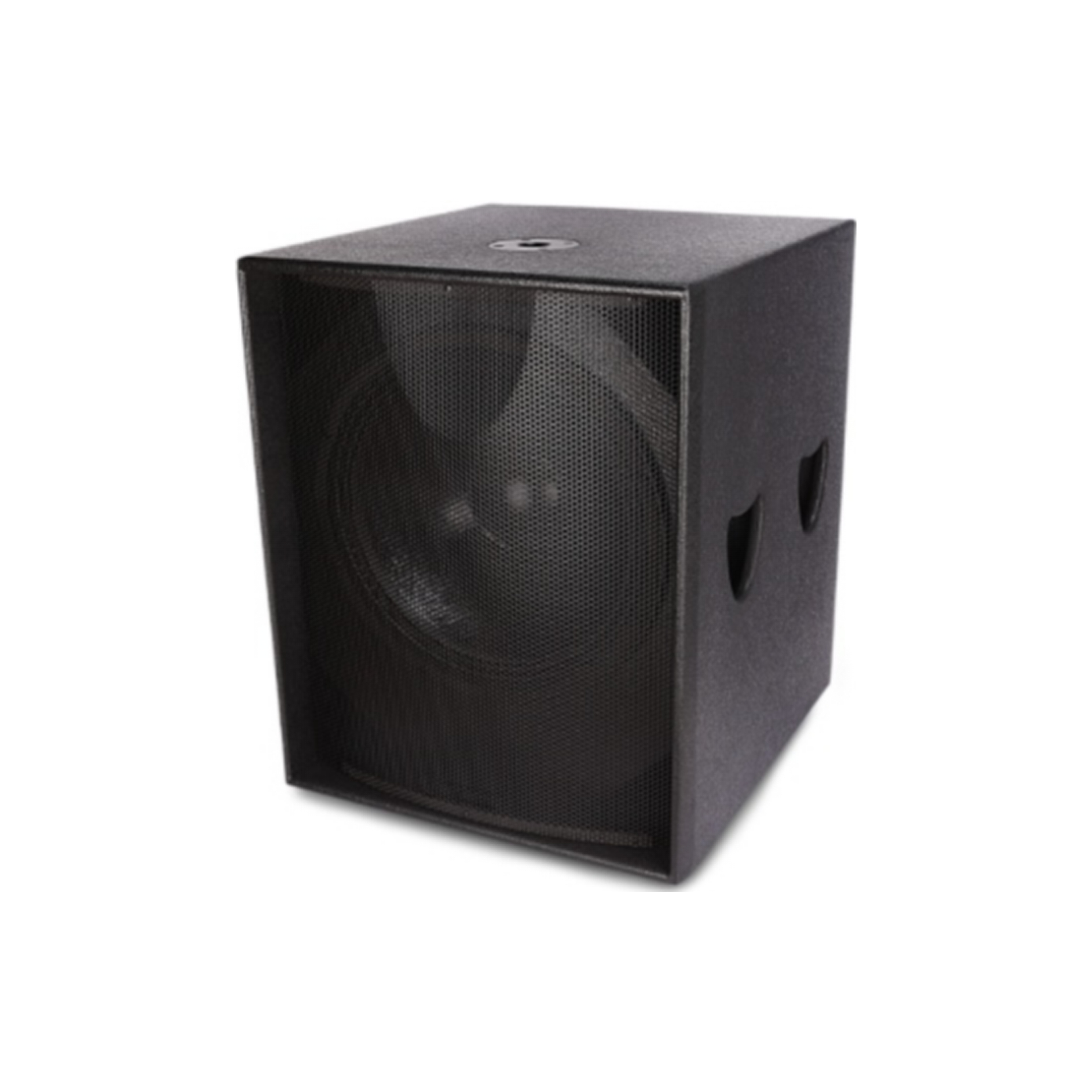

S-15

Single 15" ultra low voice, bass 190 magnetic 75 core, aluminum alloy basin frame box splint 350W

Technical indicators:

System SUB BASS,

Frequency response 35Hz-400kHz

Low tweeter unit configuration LF:15"

8 Ω impedance

97 db sensitivity

Power 350 w

Maximum sound pressure 123dB

Size 620 x 750 x 650 d h l

Net weight 29.7 KG

S-18

Single 18" ultra low voice,220 magnetic (imitates B&C inside and outside wound) 100 core alloy basin rack 600W

System SUB BASS,

Frequency response 35Hz-400kHz

Low tweeter unit configuration LF:18"

8 Ω impedance

97 db sensitivity

Power 600 w

Maximum sound pressure 126dB

Size 620 x 750 x 650 d h l

Net weight 38.5 KG
