DM Series Professional Speakers DM-122, DM-152, DM-252

DM-122

It is the best choice for indoor and outdoor audience.the wide pointing Angle of 90x60 degrees is to obtain the sound amplification ability of a wider coverage, the computer optimization simulation design is to obtain good frequency response, and the phase characteristics are flexible and convenient for various installation methods.

Used for full range audio amplification, bars, dance halls and other public places, any large sound engineering or mobile performance system amplification, listening back, supplementary used in high quality output music replay, can be used together with the subwoofer.

Single 12" full frequency speaker with 156 magnetic 65 core bass (aluminum frame) and 90 magnetic 34 core treble 250W.

System 2 frequency division

Frequency response 57Hz-18kHz

LF:12" HF:1"

8 Ω impedance

95 db sensitivity

Power 250 w

Maximum sound pressure 127dB

Size 389 x 634 x 369 d h l

Net weight 20.5 KG

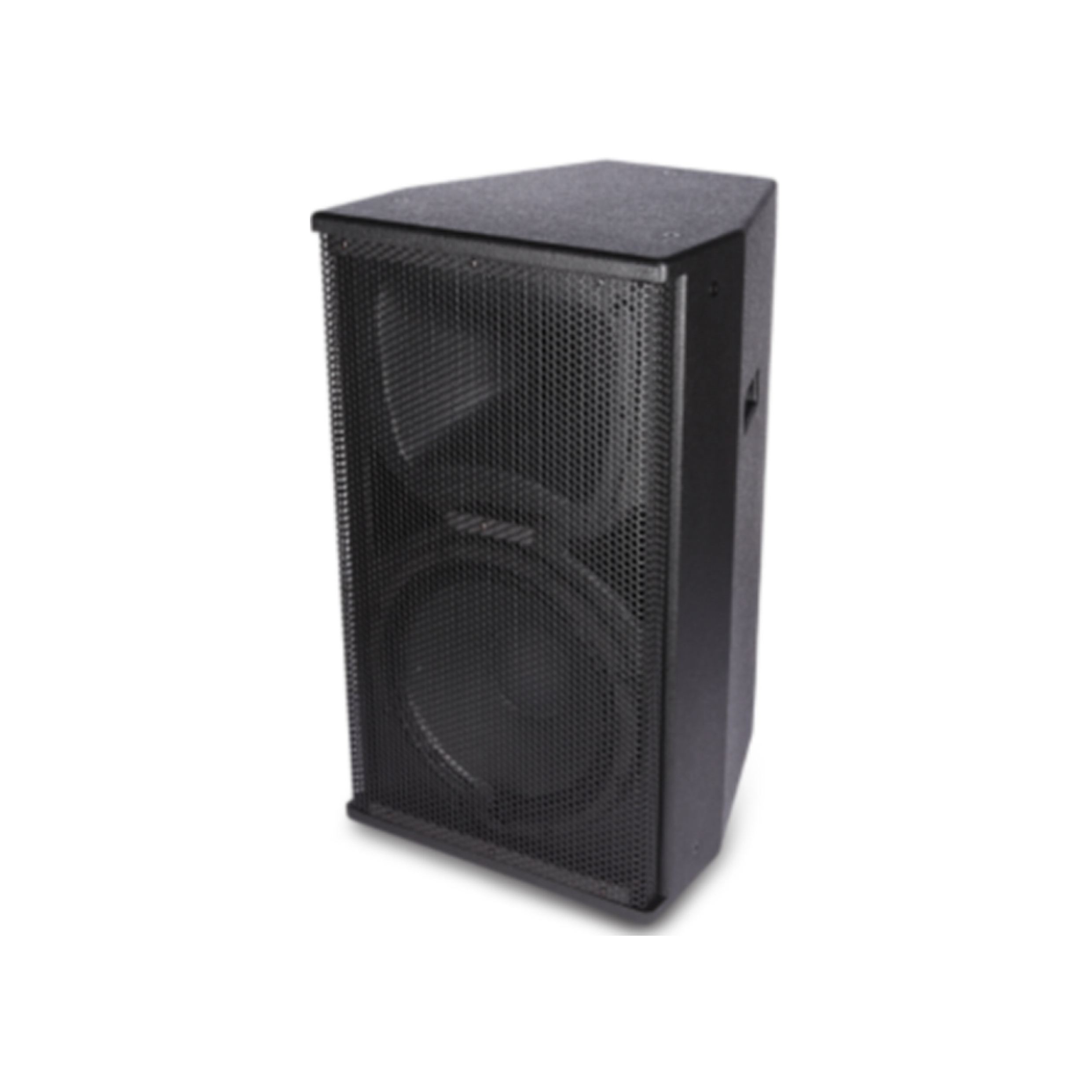

DM-152

It is the best choice for indoor and outdoor audience.the wide pointing Angle of 90x60 degrees is to obtain the sound amplification ability of a wider coverage, the computer optimization simulation design is to obtain good frequency response, and the phase characteristics are flexible and convenient for various installation methods.

Used for full range audio amplification, bars, dance halls and other public places, any large sound engineering or mobile performance system amplification, listening back, supplementary used in high quality output music replay, can be used together with the subwoofer.

Single 15" full frequency speaker 170 magnetic 65 core (aluminum frame) treble 135 magnetic 51 core 300W.

System 2 frequency division

Frequency response 50Hz-18KHz

LF:15" HF:1"

8 Ω impedance

95 db sensitivity

Power 300 w

Maximum sound pressure 123dB

Size 389 x 634 x 369 d h l

The net weight of 32 KG

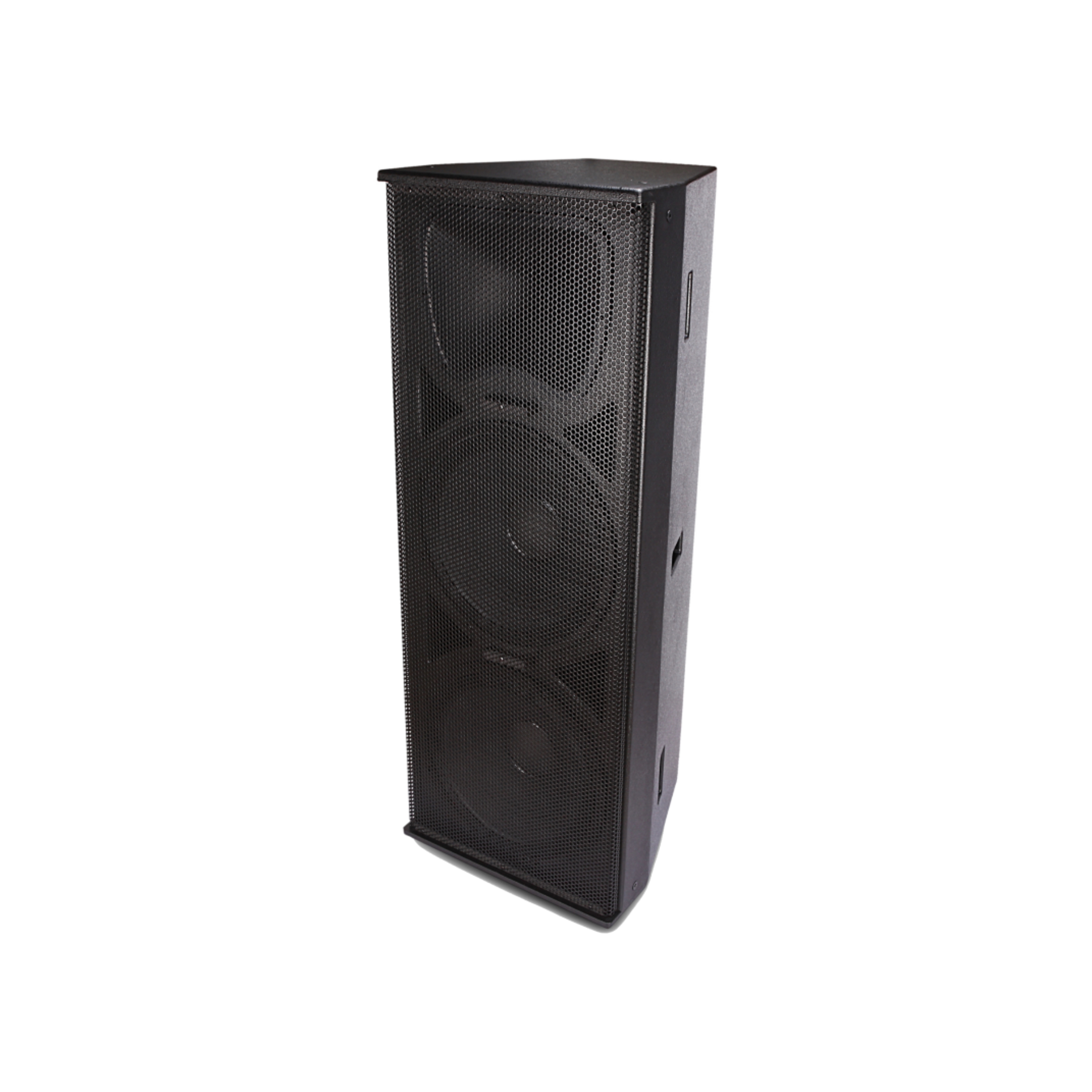

DM-252

It is the best choice for indoor and outdoor audience.the wide pointing Angle of 90x60 degrees is to obtain the sound amplification ability of a wider coverage, the computer optimization simulation design is to obtain good frequency response, and the phase characteristics are flexible and convenient for various installation methods.

Used for full range audio amplification, bars, dance halls and other public places, any large sound engineering or mobile performance system amplification, listening back, supplementary used in high quality output music replay, can be used together with the subwoofer

Dual 15" full frequency speakers 15"*2 bass 170 magnetic 65 cores (aluminum frame) treble 135 magnetic 51 cores 600W.

System 2 frequency division

Frequency response 45Hz-18KHz

LF:15"×2 "HF:1"

Impedance 4 Ω

97 db sensitivity

Power 600 w

Maximum sound pressure 125dB

Size 458 x 1210 x 458 d h l

Net weight 47.5 KG
